Product Details

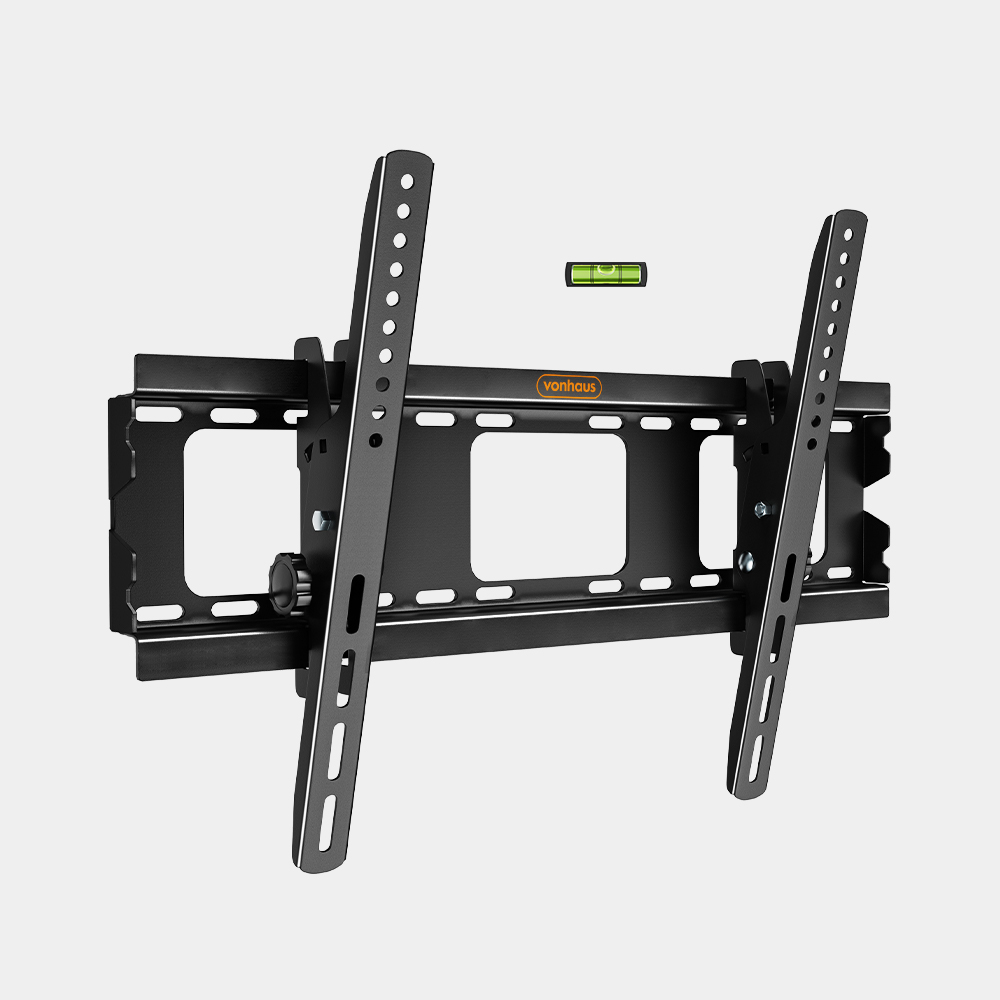

32–75 Inch Tilt TV Bracket – Adjustable Wall Mount by VonHaus

Upgrade your home entertainment setup with the VonHaus 32–75 Inch Tilt TV Bracket, designed for secure, versatile and space-saving TV mounting. Perfect for screens up to 75 inches, this sleek tilting wall mount lets you find the ideal viewing angle while keeping your TV close to the wall.

Key Features:

Wide Compatibility: Suitable for most LED, LCD, OLED and Plasma TVs up to 75".
Adjustable Tilt: Easily tilt your TV to reduce glare and enjoy optimum viewing comfort.

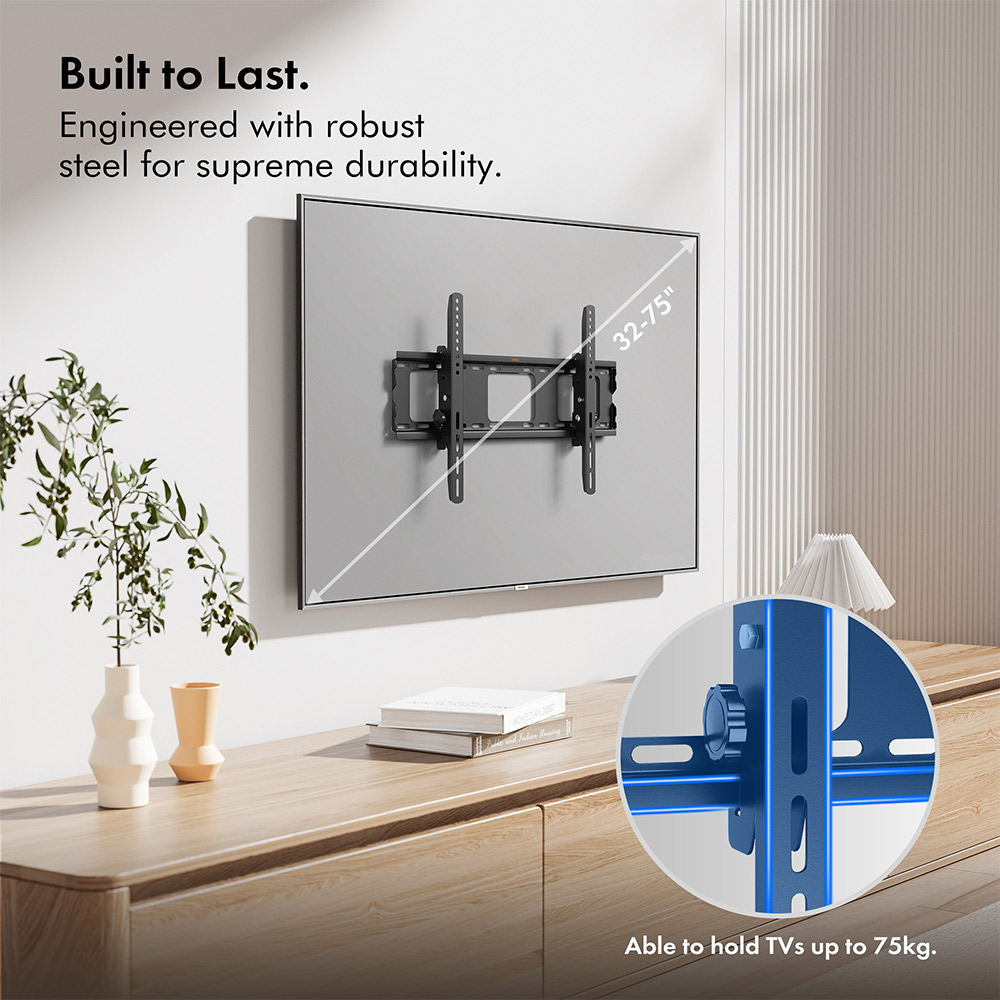

Strong & Secure: Built from heavy-duty steel, the back plate features multiple large, cold-rolled steel holes, allowing installation over plug sockets and aerial plates.

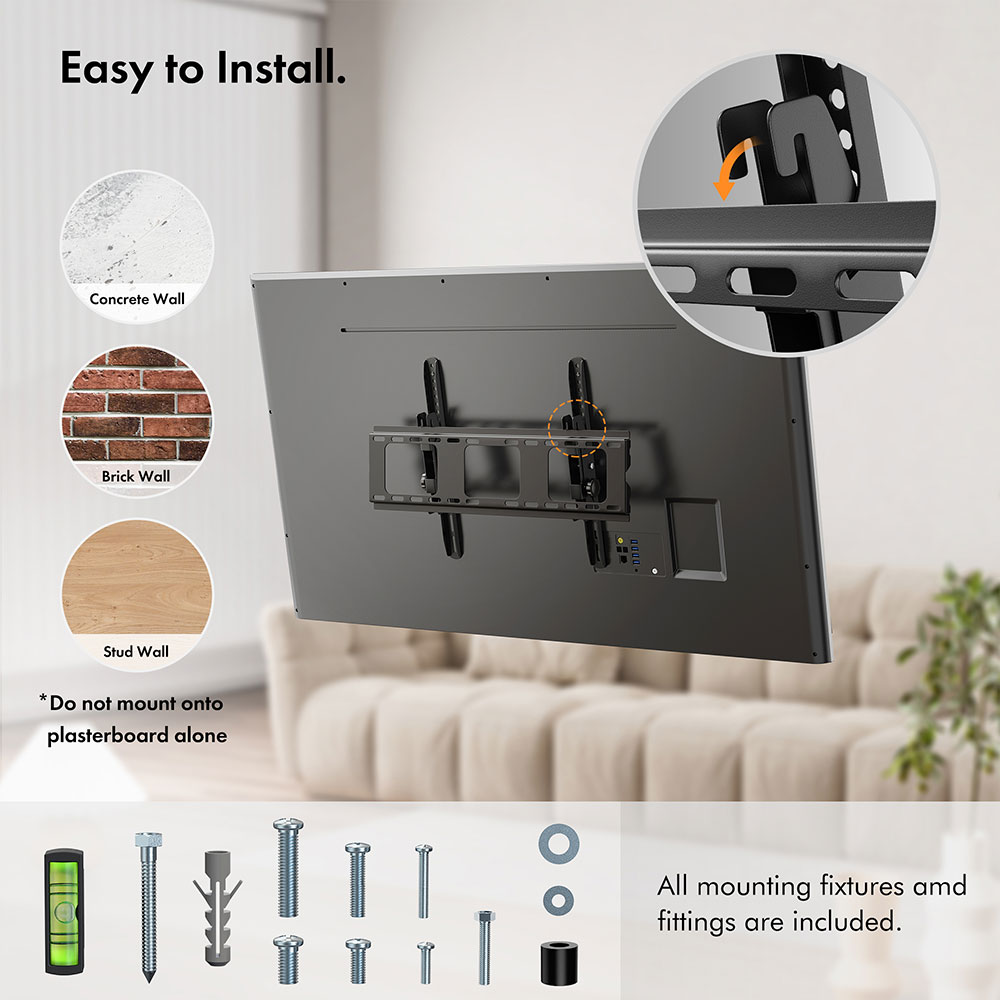

Easy Installation: Comes with clear step-by-step instructions, a wall fitment guide, and all necessary fixings, plus a built-in spirit level for precise alignment.
Versatile Mounting: Compatible with solid walls and single stud walls for flexible installation.
Durable & Reliable: Backed by a 25-year warranty, automatically applied after purchase.

Create a clean, modern look while enjoying a fully adjustable viewing experience with this high-quality tilt TV wall mount.

SKU: 3005004

Specifications

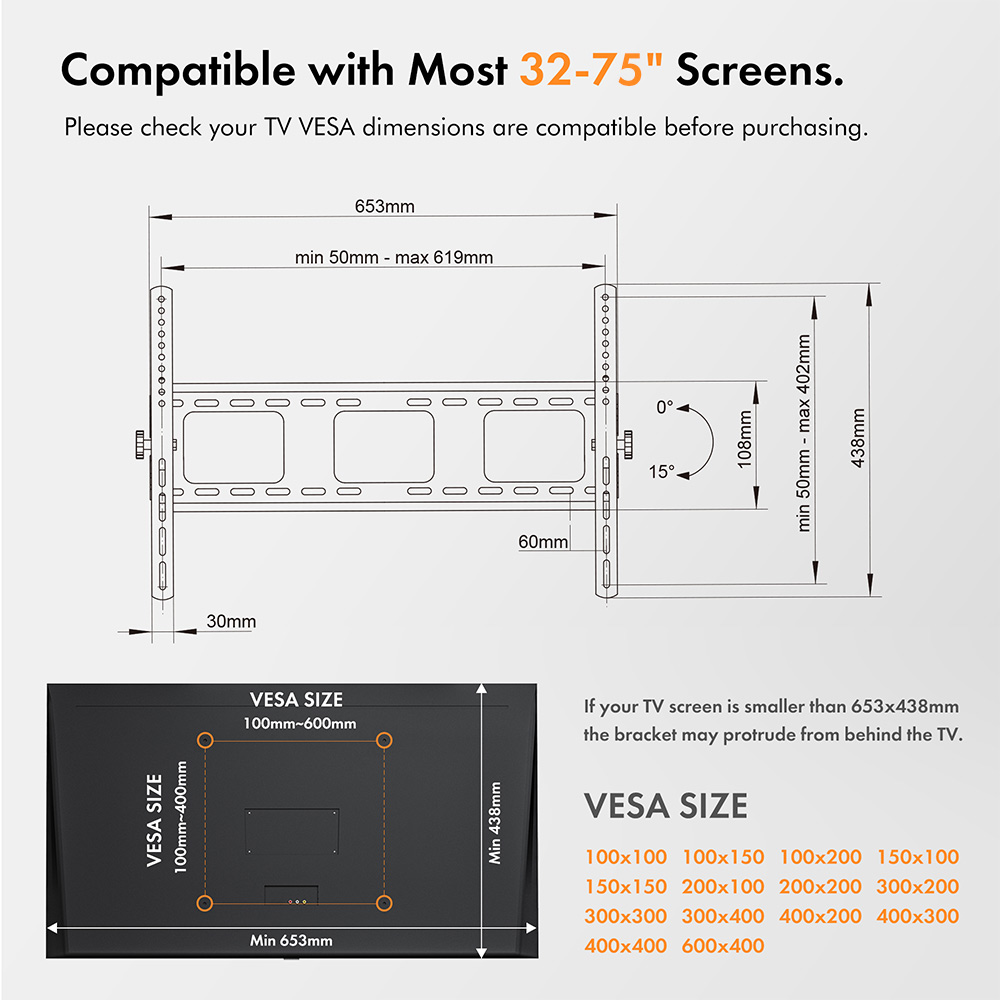

Dimensions (Overall): (W)653mm x (H)438mm
Colour: Black
Type: Tilt Bracket
Compatible TV Sizes: 32"-75"
Material: Steel
Weight: 2.3kg

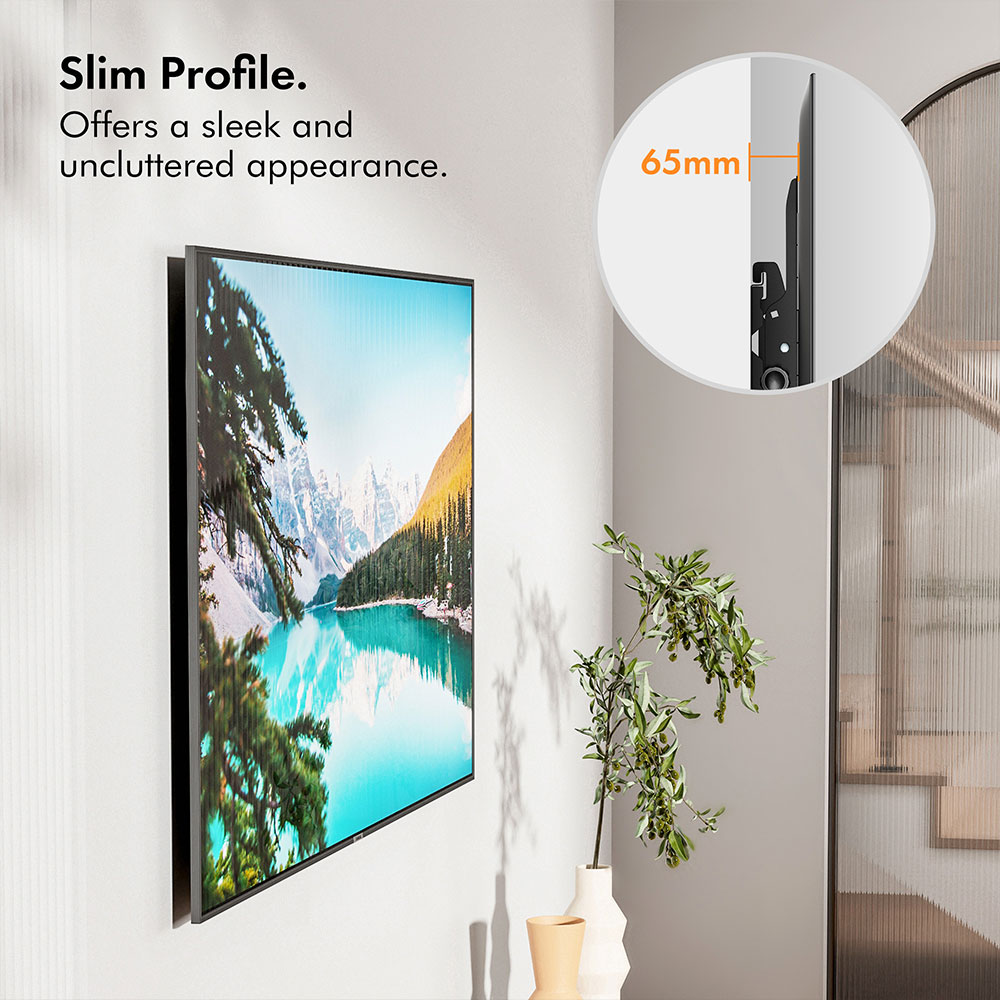

Profile From Wall: 65mm
VESA Compatibility: 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 300x200, 300x300, 300x400, 400x200, 4000x300, 400x400, 600x400.
Max Weight Capacity: 75kg
Includes Fixings: Yes
SKU: 3005004

32-75 inch Tilt TV Bracket

SKU

3005004

Instruction Manual

FAQ's

VESA Installation Tilt Wall Curved TVs Warranty

Can I install this VonHaus 32-75" TV Bracket by myself?

Many can install a VonHaus TV Bracket solo, especially smaller models, but it's recommended to have a second person help, especially for larger TVs to ensure safe lifting and correct alignment. Watch our handy video for assembly guidance.

Does this VonHaus 32-75" TV Bracket come with mounting hardware?

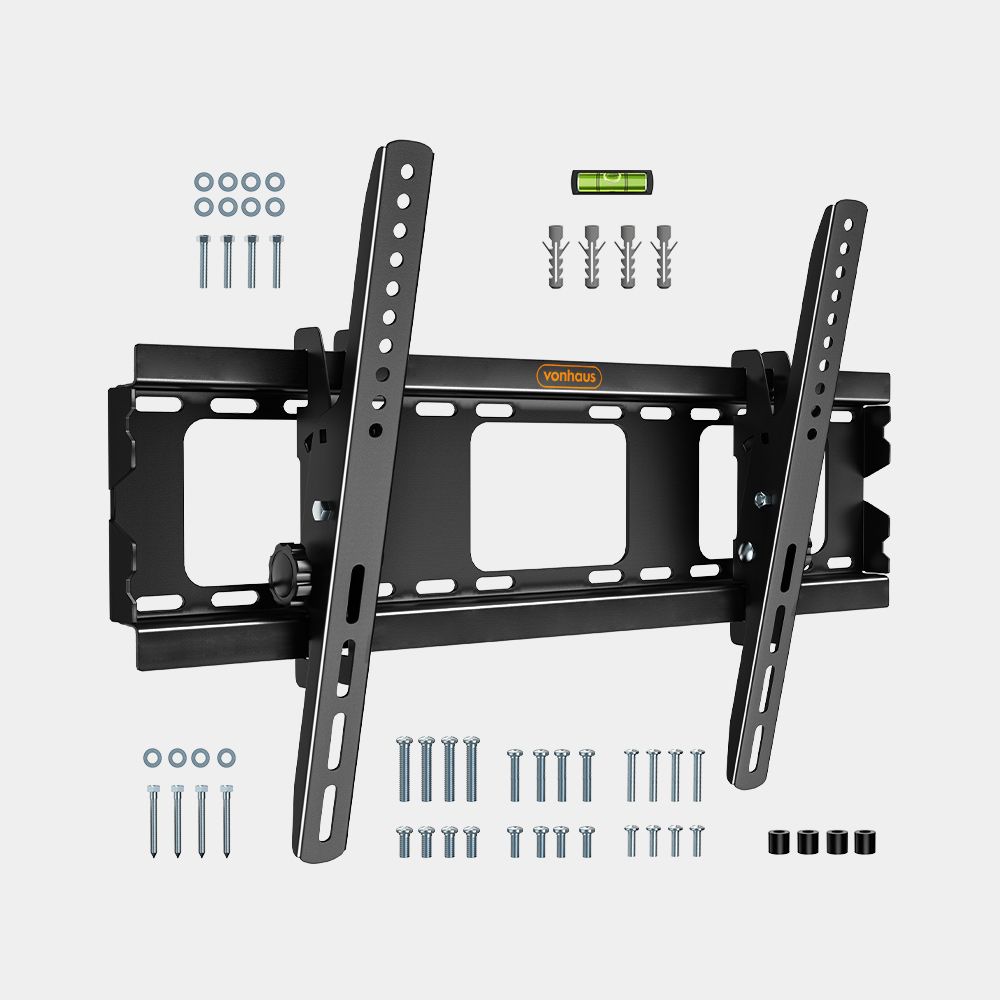

Yes, this TV bracket includes a full mounting kit with screws, wall plugs, a spirit level and installation instructions.

Is it possible to adjust the TV position after installation?

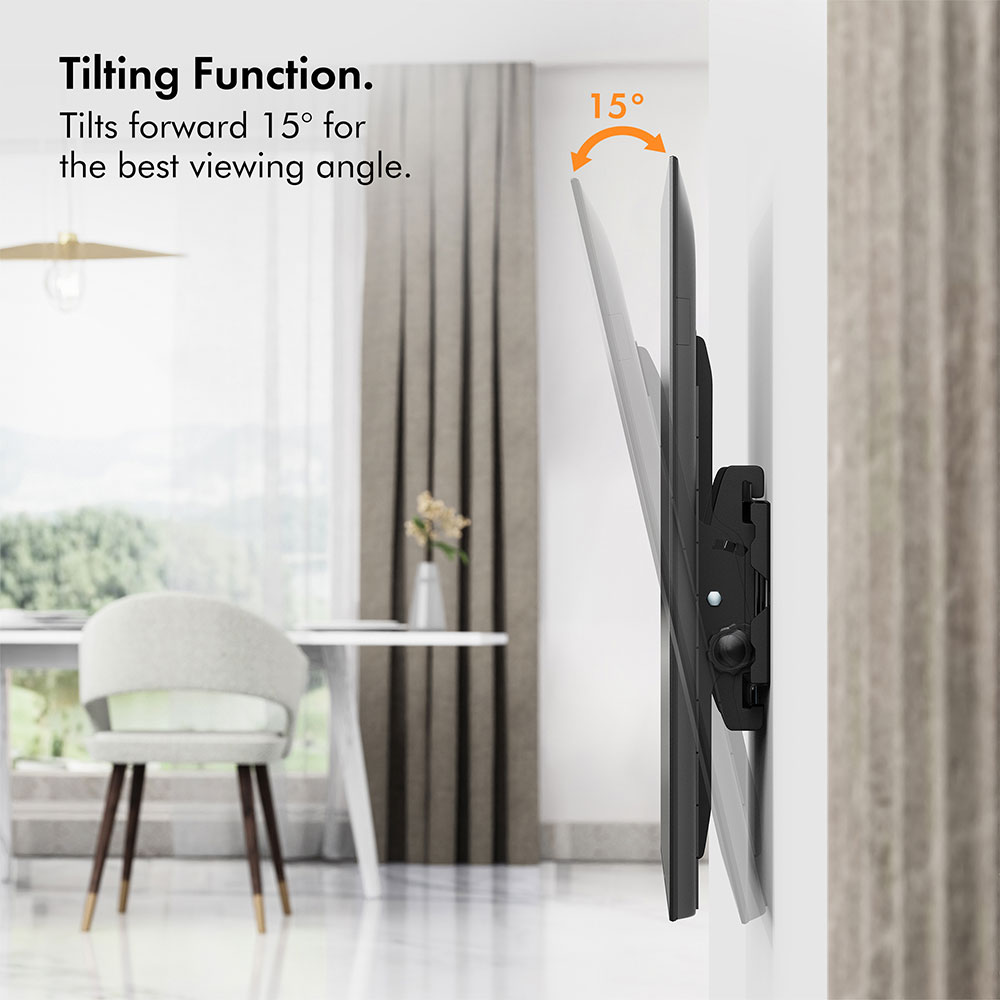

Yes, you can adjust the angle and position even after installation. This TV Bracket offers 15 degrees tilt - up or down to adjust for glare avoidance.

Can I install this VonHaus 32-75" TV Bracket onto Plasterboard?

This TV Bracket can fit most walls such as Brick, Concrete, Stud Walls and more.

Plasterboards are not recommended to hold the weight of the TV or TV Bracket. Never mount a TV onto a plasterboard alone, consider using wooden wall studs.

Can this VonHaus 32-75" TV Bracket be used to support the TV in portrait mode?

If the VESA measurements are compatible with this TV Bracket, then yes. The VESA compatibility on this bracket is 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 300x200, 300x300, 300x400, 400x200, 4000x300, 400x400, 600x400.

Are VonHaus TV Brackets suitable for Curved TVs?

Yes, our TV Brackets are compatible with Curved TVs, provided the VESA size matches your TV. Some curved TVs may require additional spacers for secure attachment.

Does this VonHaus TV Bracket come with any warranty?

Yes, a 25-Year warranty comes with this TV Bracket, which is automatically applied after purchase.
